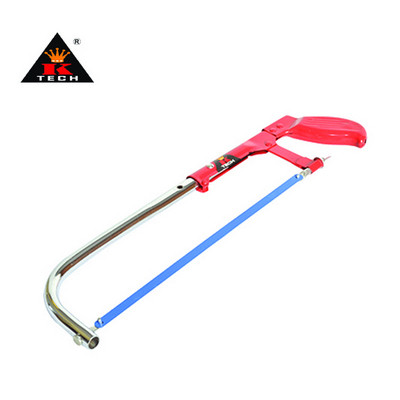

Hack Saw D Handle

A hacksaw is a hand-powered, small-toothed saw used for cutting metal pipes, rods, brackets, etc. Hacksaws can also cut through the plastic. The hacksaw has a U-shaped frame and a handle at one end. Hacksaws have small pins at each end of the frame that receives a blade. A tensioner nut or knob is then used to extend the length of the frame, which puts tension on the blade and locks it in place. The blade can be installed to cut on either the push or pull stroke; cutting on the push stroke is more common. Here are the basic parts:

1. D-handle
2. Tensioner knob
3. Blade tensioner
4. Blade Pins
5. Blade
6. Frame
